Replace Filter Element of the Compressed Air Filter

Interval

3 Month(s) Real time

The compressed air supply must correspond to the quality class according to DIN ISO 8573-1 specified in the media diagram. In case of malfunctions, reduce the maintenance interval.

Component

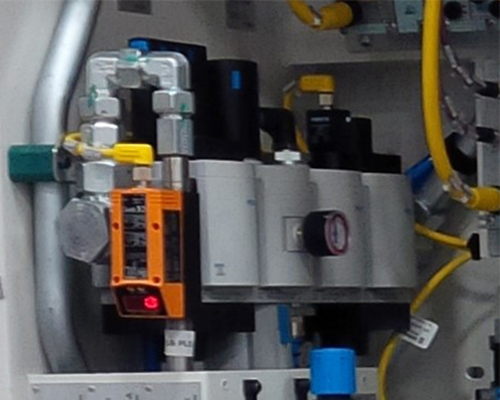

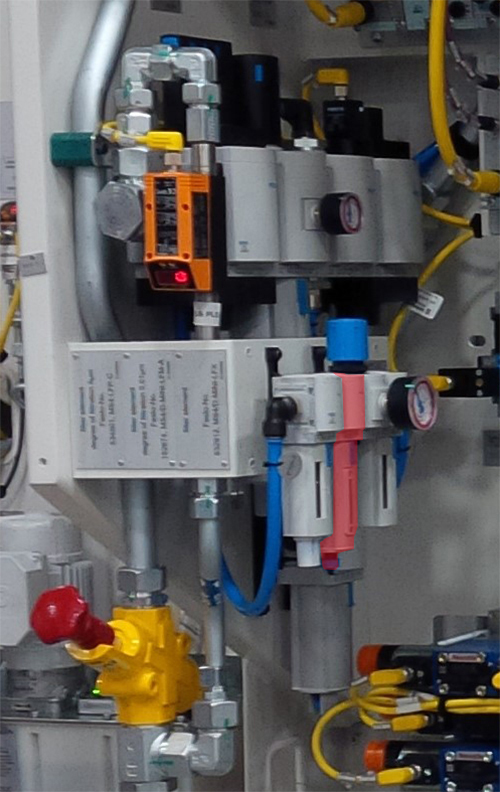

Filter pressure regulator

Check the automatic drain before replacing the filter element so that all work on the compressed air filter can be carried out at the same time.

For procedure, see: "Checking automatic drain of compressed air filter"

Spare part

Filter element

See wearing and spare parts list (VS).

Contaminated filter elements must be regarded as hazardous waste and disposed of according to the locally applicable regulations.

Vessel with soapy water for cleaning the filter container Container for collecting the compressed air condensate

Compressed air condensation is hazardous waste and should be disposed of according to the locally applicable regulations.

For manufacturer's documentation on the filter pressure regulator, see Subsuppliers' Information (ZI) from "Festo".

For structure of the pneumatic system, see media diagram (MP).

Step 1:

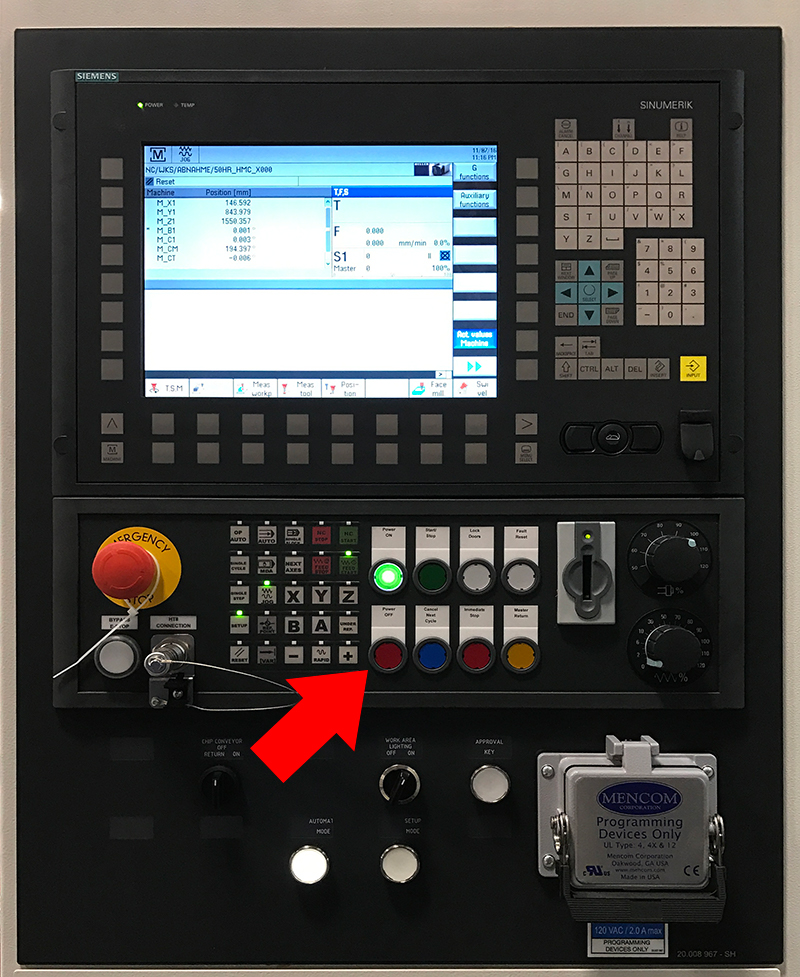

Drives and media switched off.

Step 2:

Compressed air shut-off valve closed and secured to prevent opening.

Step 3:

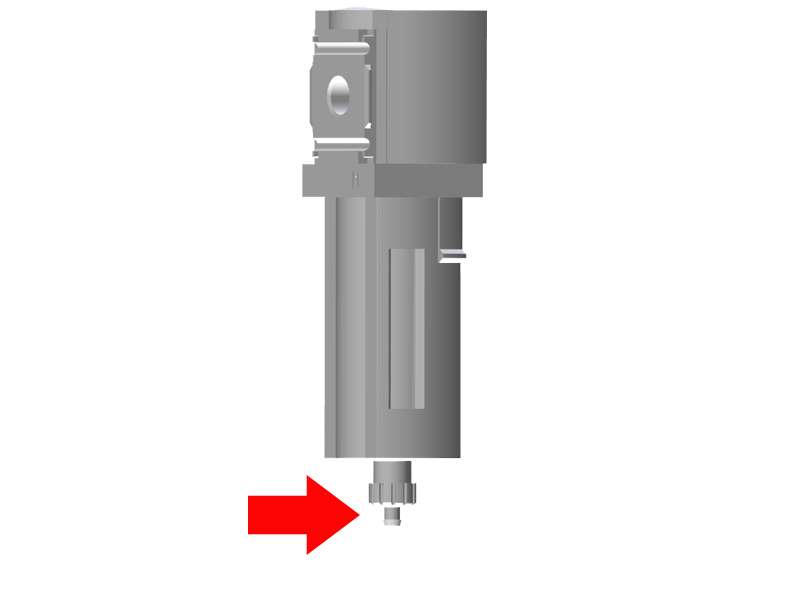

Pull off drain pipe from filter container.

Step 4:

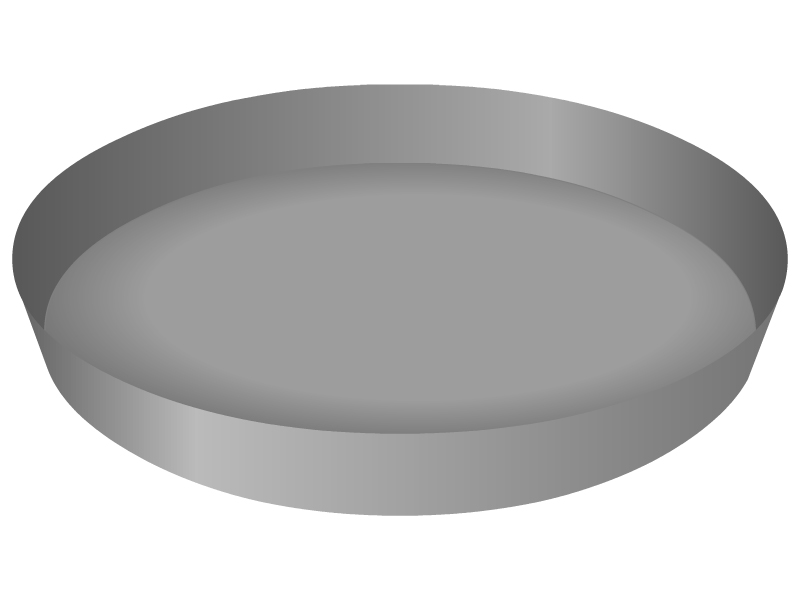

Keep ready container for collecting the compressed air condensate.

Step 5:

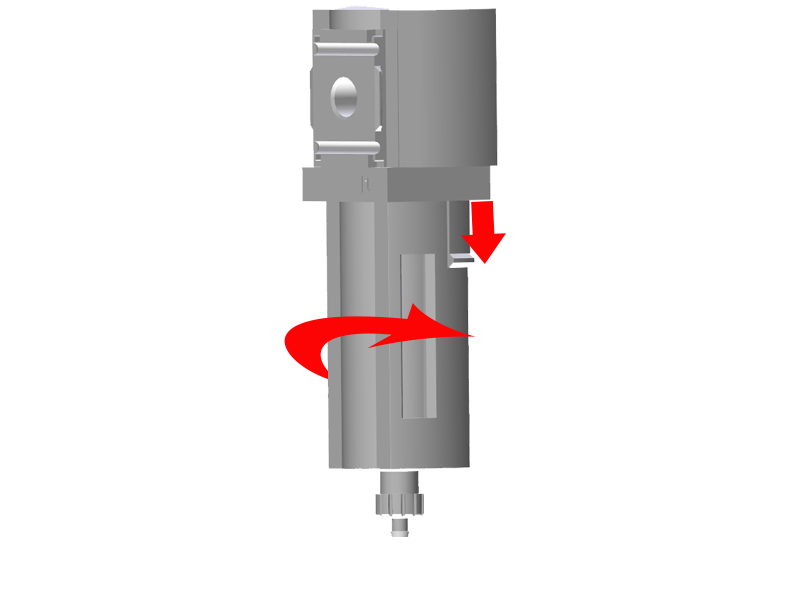

Push unlocking slider downwards and unscrew filter container.

Step 6:

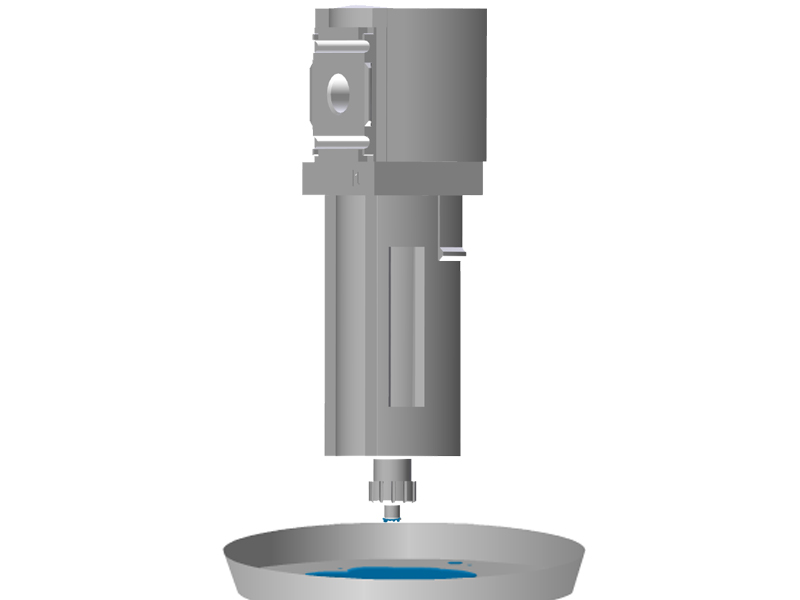

Empty filter container.

Step 7:

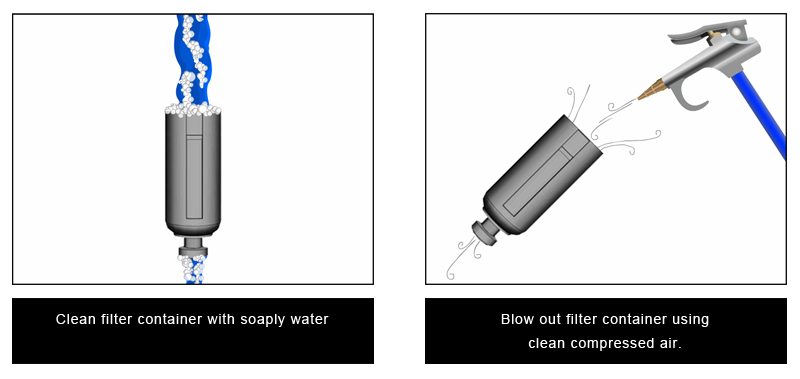

Clean the filter container with soapy water and blow out with clean compressed air.

Step 8:

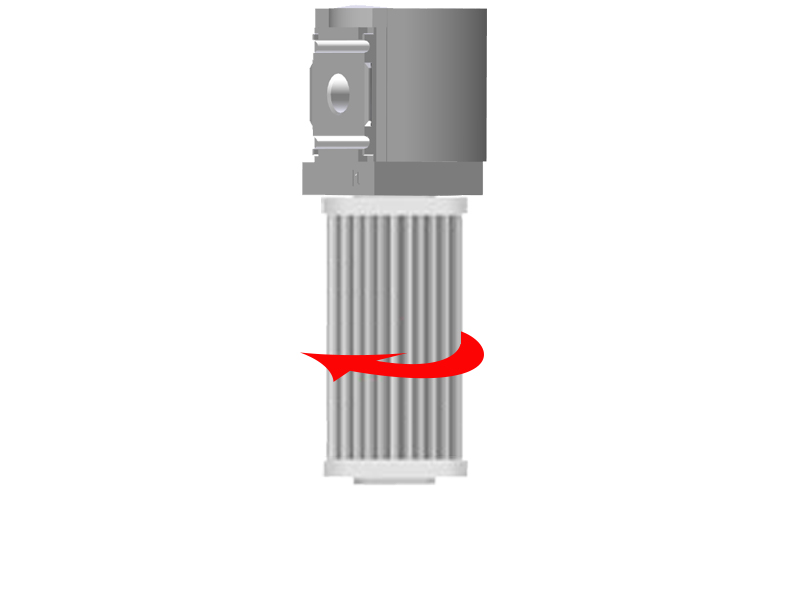

Unscrew filter element.

Step 9:

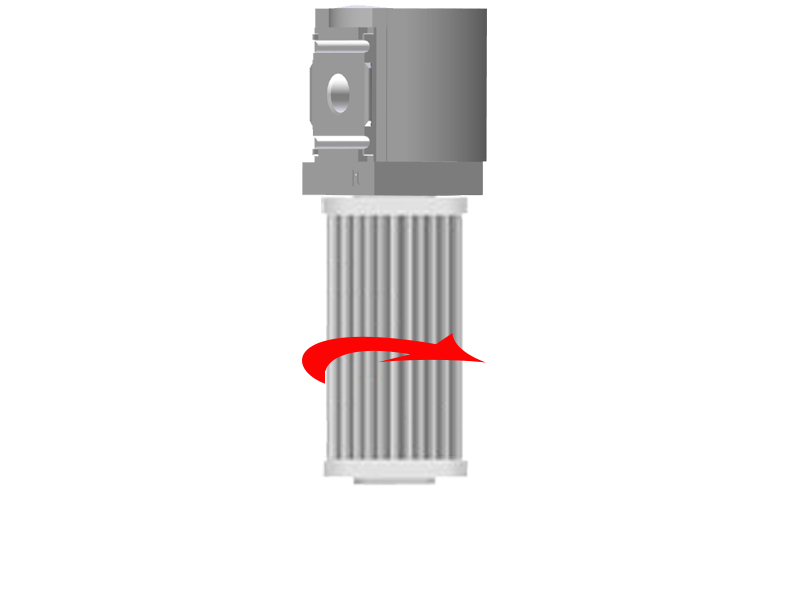

Hold the new filter element at the bottom end only. Insert new filter element, screw on filter element and tighten carefully.

Step 10:

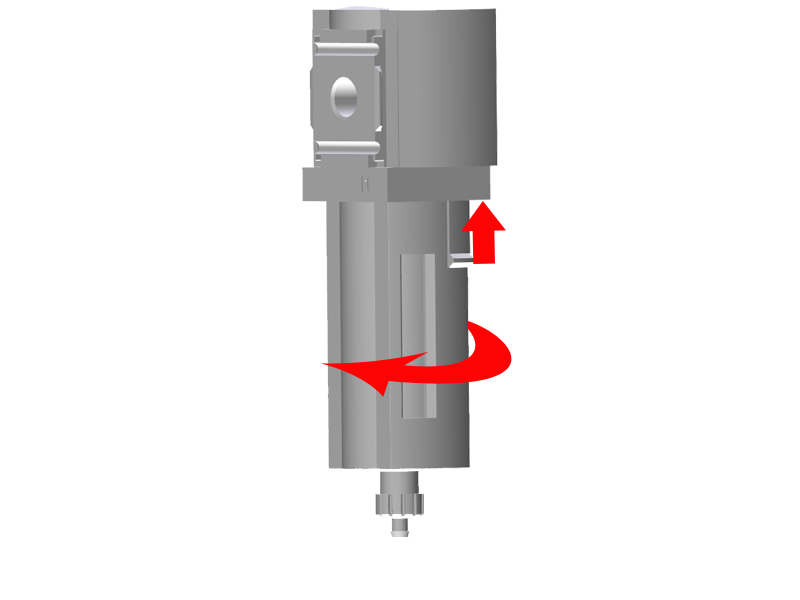

Screw on filter container.

Step 11:

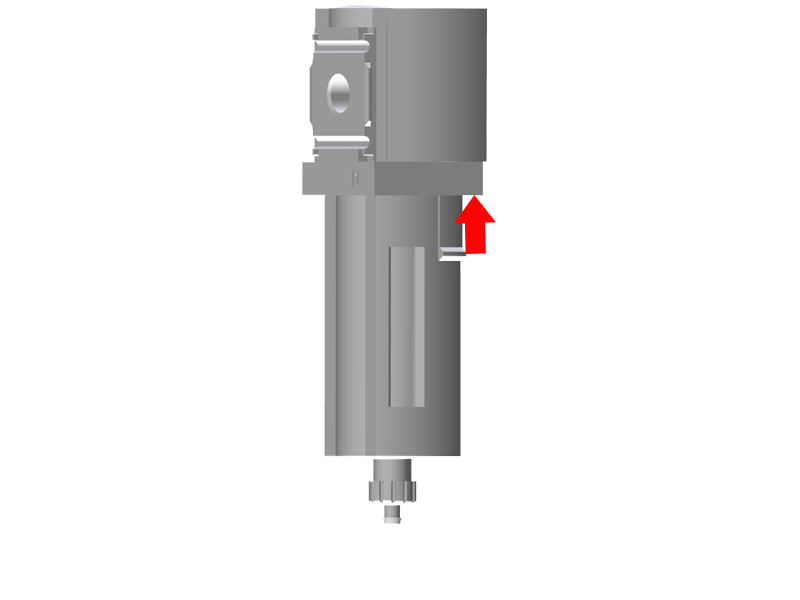

Push up unlocking slider.

Step 12:

Screw on drain pipe.

Step 13:

Open compressed air shut-off valve.

Step 14:

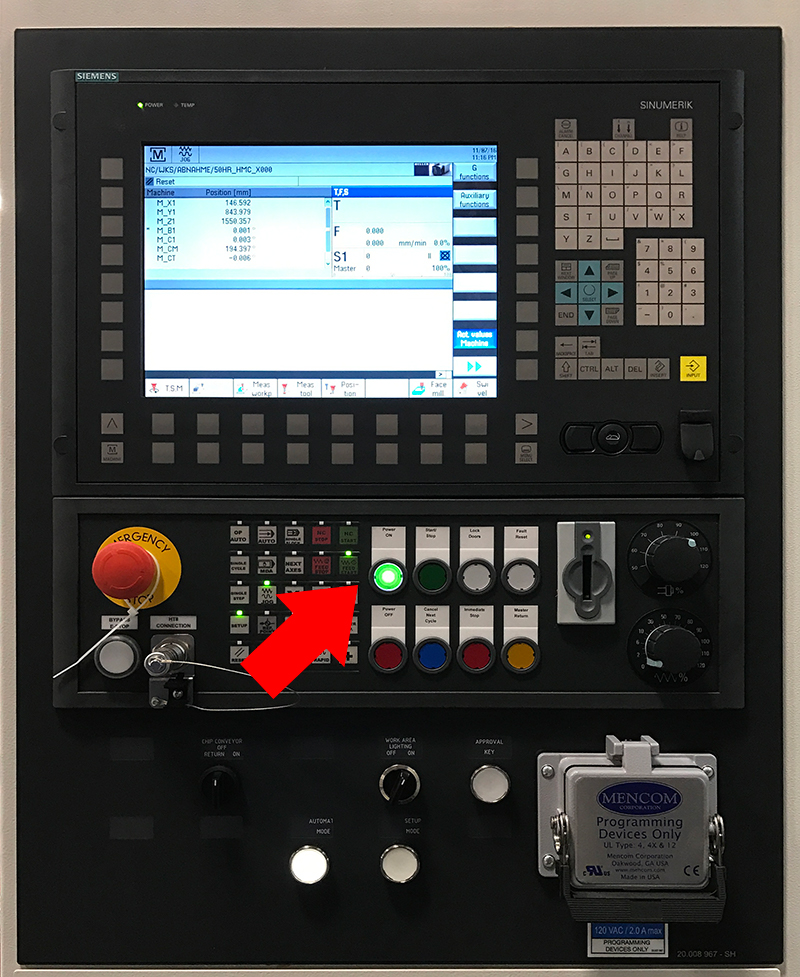

Switch on drives and media.

Step 15:

Check compressed air filter for leakage.
