Replace HMI Machine Push Button Panel (MPP)

Description: This document describes the required settings when replacing the Machine Pushbutton Panel.

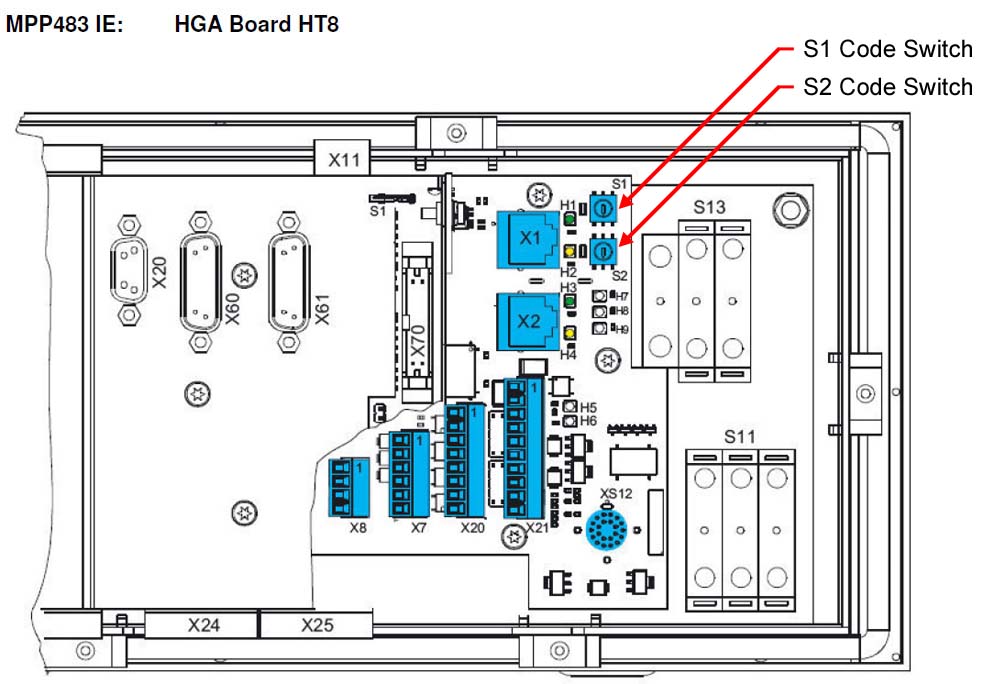

Switch	Target Value
S1 Code Switch module address Bit 4...7	D
S2 Code Switchmodule address Bit 0...3	F

DF = Address 223 (important for using HT8 operating unit)
