Replace HMI Machine Control Panel (MCP)

Description: This document describes the required settings when replacing the Machine Control Panel.

1	2	3	4	5	6	7	8	9	10	Importance
								off	off
on	on	on	on	on	on	on	on			MPP-Adress 192

The switch S2-9 and S2-10 are always off

The switch S2-1 till S2-8 define the MPP-Adress the default area is between 192 and 223

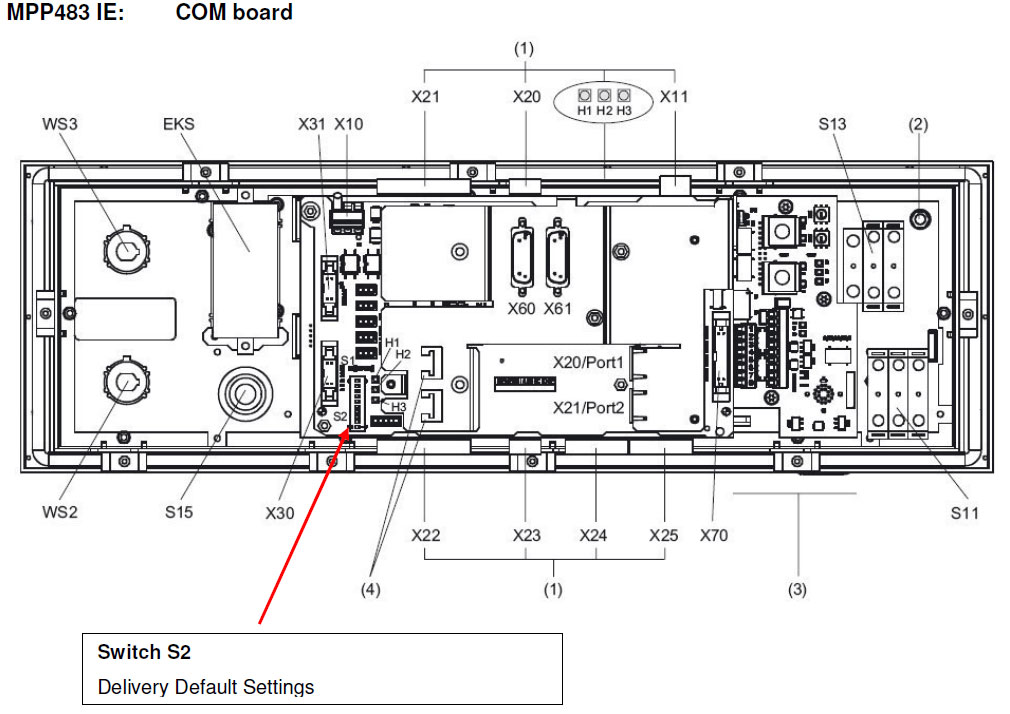

Heller uses the standard addressing scheme 192 of the machine control panel. The configuration of switch S2 shown in the table (position 14) must be checked.
